Features:
1. Strict vehicle certification

    Complies with AEC-Q101 standards and supports PPAP production part approval process.

    Passed automotive specific tests such as ISO 7637-2 (Transient Conducted Immunity of Automotive Electronics), ISO 16750-2 (Load Drop), IEC 61000-4-2/4-5 (ESD and Surge).

2. Ultra fast response speed

    The typical response time is less than 1ns, much faster than traditional protective components such as varistors and fuses.

3. Wide temperature range and high reliability

    Working temperature -55 ℃~+175 ℃, suitable for high temperature environments such as engine compartments.

    No aging effect, able to withstand multiple surge impacts, long lifespan, high stability.

4. High power and low clamping

    The peak pulse power is 200W~12kW, and the peak current can reach several hundred amperes.

    Low clamping voltage provides precise protection for backend components.

5. Packaging and Environmental Protection

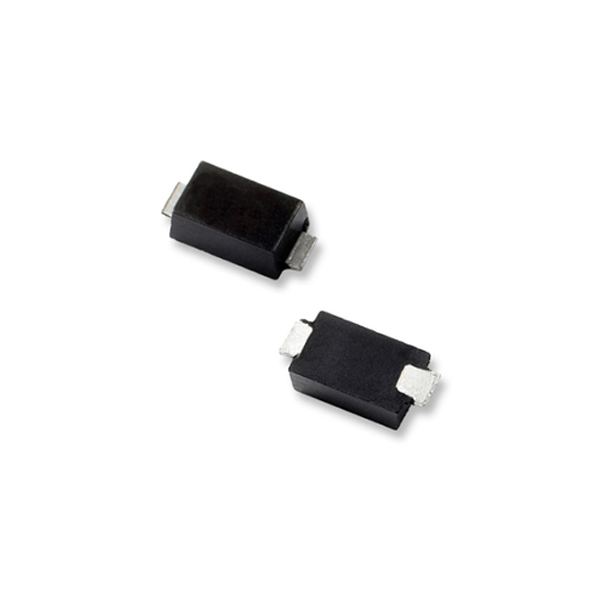

    Mainstream packaging: SOD-123FL, DO-214AA (SMB), DO-215AB (SMC), DO-218, etc.

    Lead free, halogen-free, compliant with RoHS and UL 94 V-0 flame retardant standards.

Applications：
1. Vehicle power supply system

    12V/24V/48V power input, cigarette lighter, USB, OBD interface: suppresses sudden load drops and external overvoltage.

    DC-DC converters, on-board chargers (OBC): protect power levels and control circuits.

2. Automotive communication bus

    CAN/LIN/Ethernet interface: ESD and surge protection to ensure data stability.

3. Core of New Energy Vehicles

    BMS battery management system: protects voltage sampling, sensors, and communication links.

    Motor controller and inverter (IGBT/SiC MOSFET): suppress switch spikes and gate overvoltage.

4. Vehicle body and intelligent driving
