Features:
1. High environmental adaptability
Temperature: Operating temperature -40 ℃~+150 ℃ (engine compartment can reach 175 ℃)
Protection: Waterproof and dustproof rating IP67~IP6K9K
Chemical resistance: resistant to oil, coolant, and salt spray (96 hours of salt spray corrosion free)
2. Superb mechanical reliability
Anti vibration: can withstand high-intensity vibrations of 10Grms without loosening
Impact resistance: withstand severe impacts during vehicle operation

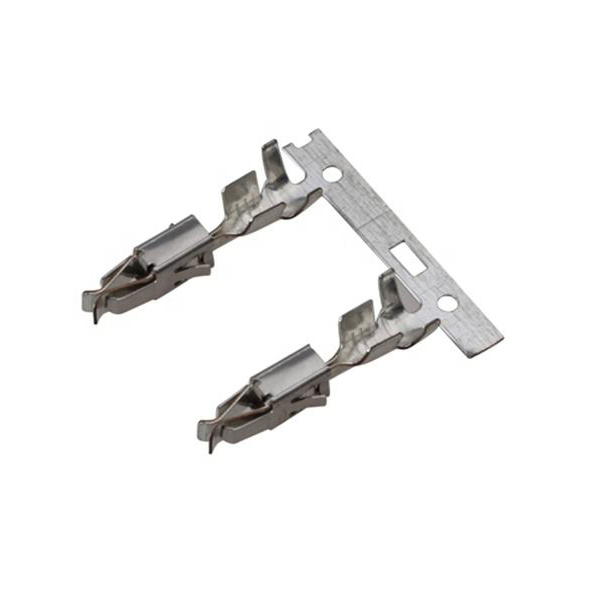

High retention force: Terminal retention force>40N, double locking (TPA+CPA) to prevent virtual connection
Long lifespan: ≥ 5000~10000 insertions and removals
3. Excellent electrical performance
Low voltage: stable signal, contact resistance<5m Ω
High voltage: capable of carrying 400V~1000V, 600A high current
High speed: Supports 1Gbps~25Gbps in car Ethernet and GMSL signal from camera
Safety: High voltage connectors must have HVIL (High Voltage Interlock) to prevent electric shock
4. Miniaturization and lightweighting
The spacing is as small as 0.5mm~1.27mm
Suitable for fine wire diameter (0.13mm ²), reducing the weight of the wiring harness
Applications：
1. Power system
Engine compartment: sensors, ignition coils ECU
New energy three electricity:
BMS (Battery Management System)
Motor controller, OBC (on-board charger) DC/DC
High Voltage Distribution Unit (PDU)
2. Vehicle control system
Car lights (headlights, taillights)
Seat, window, and rearview mirror adjustment
Door locks, sunroof, air conditioning (HVAC)
Airbag (special self-locking connector)
3. Intelligent Driving Systems (ADAS)
Camera, radar, LiDAR
Domain controller, vehicle Ethernet
4. Information entertainment system
AC/DC fast charging interface (national standard GB/T, European standard CCS2)
