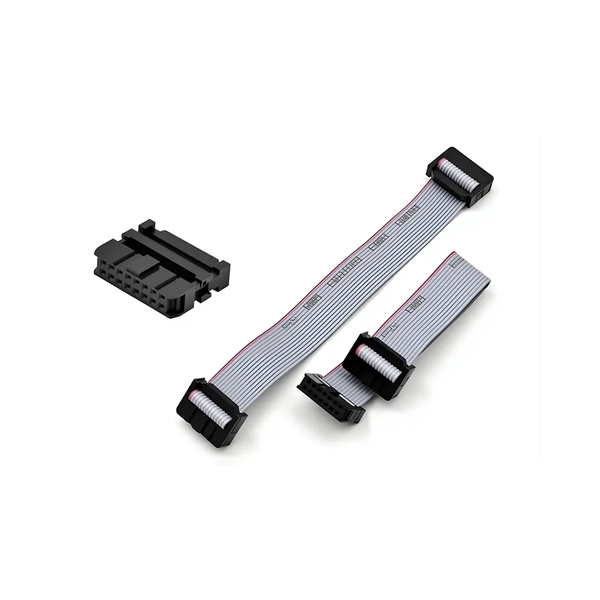

IDC (Insulation Displacement Connector) is a quick connector that does not require wire stripping and achieves electrical connection by piercing the insulation layer of the wire with a metal blade.
Features:
1. Efficient installation: No need for wire stripping or welding, completed in one press fit, assembly speed increased by over 50%.
2. Reliable connection: airtight contact, vibration resistance, corrosion resistance, long-term stability, extremely low contact resistance.
3. High density: Multi pin parallel, suitable for compact wiring inside PCB/equipment.
4. Low cost: saves labor and materials, suitable for large-scale automated production.
5. Strong universality: Suitable for flat ribbon cables (FFC), single core/multi strand cables (28-22 AWG).
6. Environmental tolerance: working temperature -40 ℃~+105 ℃, industrial grade stability.
Applications：
1. Computer/Server
Old style IDE hard drive/optical drive cable, motherboard and front panel, fan, sensor connection.
Internal signal/power connections for server backplanes and storage modules.
2. Communication/Network
Internal wiring of switches/routers, RJ45 modules, Cat5e/Cat6 patch panels termination.
3. Industrial Automation
PLC、 Sensors, servo drives, and internal wiring harnesses of industrial control computers.
4. Automotive Electronics
BMS、ECU、 Connection between dashboard and body control module.
5. Consumer Electronics/Home Appliances
Internal signal connections for printers, LCD panels, and smart home appliances.
6. Embedded/Medical
Stable internal connections between development boards (Arduino/Raspberry Pi) and medical devices.
