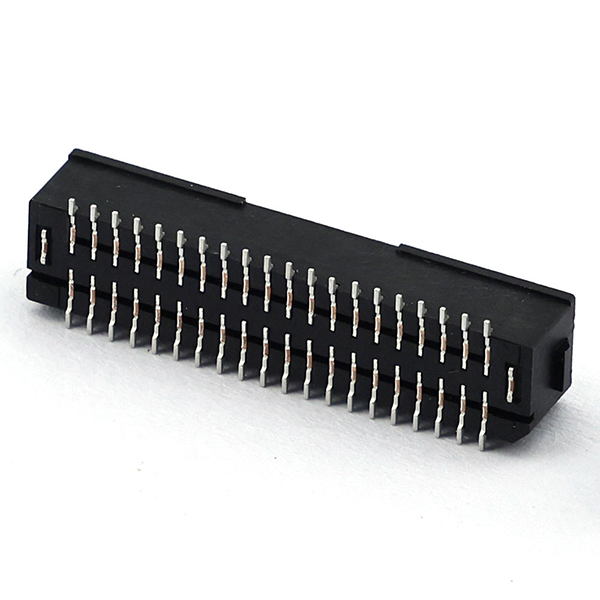

Features:
1. Miniaturization and High Density
Extremely small spacing (up to 0.6mm), flat design, saving 40%~50% PCB space.
Supports high-density connections with single/double rows and up to tens of cores.
2. Excellent electrical performance
Low contact resistance (1-20m Ω), stable signal transmission.
Rated current 1A~30A, suitable for power supply and signal transmission.
3. High reliability
The material has a wide temperature resistance range (-40 ℃~125 ℃).
Equipped with anti misoperation polarity, locking structure, earthquake resistance and anti loosening.
The insertion and removal lifespan is usually ≥ 500 times.
4. Efficient assembly
SMT type supports automated reflow soldering, while DIP type is convenient for manual soldering.
Wire end crimping, no need for welding, simplifies assembly process.
Applications：
1. Consumer electronics
Smartphones and tablets: Connect the motherboard to the screen, battery, and camera module.
Notebook and smartwatch: Signal and power connections between internal modules.
2. Automotive Electronics
Power control system (ECU), sensors, battery management system (BMS).
Interior electronics such as car audio and video, dashboard, etc.
3. industrial control
PLC、 Servo drives, industrial robots.
The connection between the frequency converter, sensors, and control board.
4. Communication and Medical
