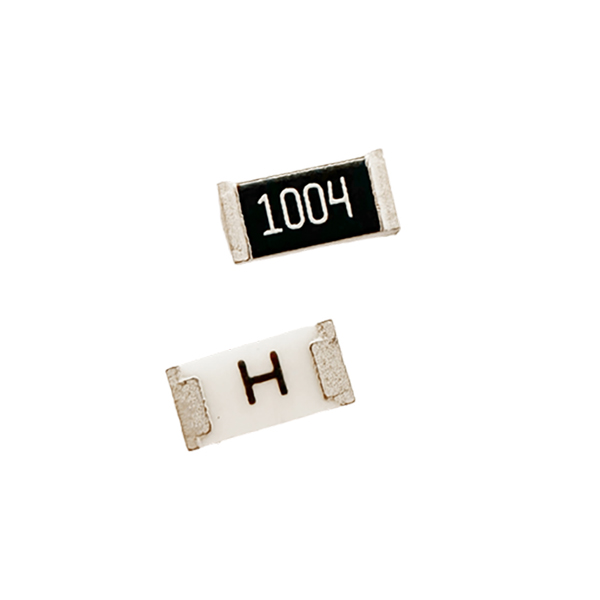

Thin Film Chip Resistors are precision resistors made by depositing metal or alloy resistive thin films (usually<1 micron in thickness) on high-purity ceramic substrates through thin film processes such as vacuum sputtering and evaporation, and then photolithography, laser resistance tuning, passivation, and polarization packaging.
Features:
1. High precision: tolerance ± 0.01%~± 1% (far exceeding thick film)
2. Low temperature coefficient (TCR): ± 1~± 50 ppm/℃ (minimal temperature drift)
3. Low noise, good high-frequency characteristics
4. High stability: Small long-term aging drift
5. Package: 0201~2512 (metric), power 1/20W~3W
Applications：
1. Precision measuring instruments
Multimeter, oscilloscope, signal source, calibration equipment (voltage divider/sampling/current limiting)
2. Medical Electronics
ECG/blood oxygen monitoring, ultrasound, medical imaging (low-noise signal chain)
3. Industrial and Automotive Electronics
PLC、 Sensor conditioning BMS、 Vehicle mounted ECU, ADAS (AEC-Q200 automotive grade)
4. Communication and Radio Frequency
5G base station, router, optical module, mobile RF (impedance matching, attenuation)
5. High end audio/consumer electronics
Hi Fi amplifier DAC、 Wearable, precision power supply (low distortion, high precision)
6. Aerospace and Military Industry
Satellite/airborne equipment (high reliability, wide temperature range, radiation resistance)
